Accessories

Steel Building Accessories at True Cost with Your Building Order

Commercial Walk Doors

Description: Complete knock-down door kit with steel frame, header and jamb trim, threshold and heavy duty lock set.

steel walk door

***Purchasing local for HIGH WIND RATED doors is recommended.  IBS will give walk door framing kit plus additional 3×3 insulated window IN LIEU OF Walk Door for 150 mph wind Option A – Packages since pre-assembled door order is required by manufacturer (prices of pre-assembled doors are not posted here).

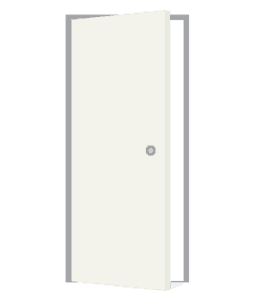

3 x 7 walk door for steel building
3 x 7 Walk Door with Cylindrical Lever

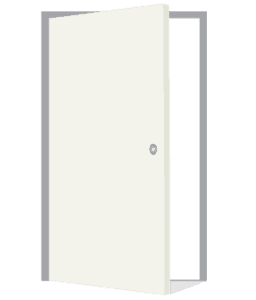

4 x 7 walk door for steel building
4 x 7 Walk Door with Cylindrical Lever

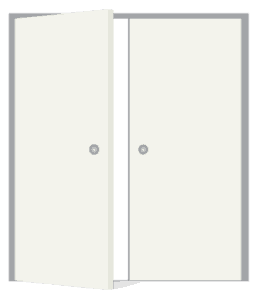

6 x 7 walk door for steel buidling
6 x 7 Walk Doors with Cylindrical Levers
metal building walk door
Cylindrical Lever Lock

Commercial Windows

Description: Framed Fixed or Sliding Windows with screen.

Windows for a metal building
2 x 7 metal building window
2 x 7 Fixed Window
3 x 3 sliding window for steel building
3 x 3 Sliding Window
4 x 3 sliding window for steel building
4 x 3 Sliding Window
4 x 4 sliding window for steel building
4 x 4 Sliding Window
6 x 3 sliding window for steel building
6 x 3 Sliding Window

Skylights

skylights for metal buildings

Description:  Translucent panels allow natural light into the building.  Min building wideth required 40 ft.

Ridge Vents, Louvers & Circular Vents

Metal Building Louver

Description:  An accessory that allows air to pass through building.

Louvers: are available in the following sizes: 2′ x 2′, 3′ x 2′, 3′ x 3′, 4′x 3′, 3′ x 4′, 4′ x 4′, and 5′ x 4′. All louvers are self-mulling, self-flashing, and self-framing. No other trim is required. All louvers are available to match your wall finish and color.  Fixed louvers feature roll-formed blades, fixed at a 45 degree angle. Adjustable (upon request)  louvers come with a reinforced cast aluminum hand crank to operate the blades

ridge vent for metal buildings

Ridge Vents:  Sizes 10′ ridge ventilators with 9″ and 12″ throats.  Colors finish is galvalume or white. Each comes with bird screen and adjustable damper with handle operator.

metal building circular vent

Circular Vents:  Sizes 20″- Finish is galvalume or white. Includes bird screen.

Framed Openings

Description:  All large door openings require framed opening to be engineered into your building order.  We always offer our customers Fully Flashed Framed Openings so that no red iron is visible on jambs.

steel building door opening flashing

Walk door and window framed openings

  • Pre-designed framed openings are not required for walk doors – unless in high wind area.

Overhead/Roll Up Door framed openings

Overhead/Roll Up Door Fully Flashed Framed Opening is  INCLUDED with Option A – metal building packages.  You can add these Framed Openings in Option B as you Build Your Own package.

Portal Frame - if required...

If there is no space remaining for X bracing to be placed in at least 1 of the typically equally spaced Bays of your building – on an end-wall or a sidewall-  add cost for every wall fully utilized by your openings locations.  CLICK HERE to learn more about X-Bracing and Door placement in your design.

Gutters & Downspouts

Description: Gutters and downspouts protect your building as well as enhances the buildings appearance.

Integrity Building Sales is glad to be able to offer its accessories at prices the general public can afford. Many companies dramatically mark up their accessories…with IBS everything is wholesale to our customers.

4' Wainsot with Transition Trim

wainscot for metal buildings

Description:   Beautify the exterior of your steel building with 4′ wainscot sold at our cost from the supplier.  Wainscot is already included in Option A – Elite Model, and available as an added accessory in our Option B – Estimate your Own Building Package.



CERTIFIED FOUNDATION PLANS:

We have a reliable resource for providing foundation engineering services now.  If you need foundation plans for the following states, please inquire: WA, OR, CA, ID, NV, AZ, WY, UT, CO and NE.

The typical foundation design will have a fee of $1000, $250 of which will be paid to IBS, and $800 to the foundation engineer.

A typical foundation design consists of the following:

  •         Slab on grade construction
  •         Monolithic foundation with full slab, spread footings or drilled piers
  •         Single story building with spans up to 70’-0”
  •         Building site with non-expansive soils
  •         No pier only foundations

If your foundation design requires more than what has been stipulated above, the engineer will have to custom quote.

Leave a Comment

join the club

Newsletter

Valuable information. Easily unsubscribe!

Guaranteed Savings:

  • Minimum $500 – $1,000 savings – Average savings is 15% below market rates…

  • plus one ADDITIONAL  feature more than any other offer

Our Terms:

  • 40′ x 60′ x 14′ – 80’x 100′ x 14′ with at least 2 roll up doors, roof & wall insulation included – minimum savings $500.

  • 80’x 100′ x 16′ or larger with at least 2 roll up doors, roof & wall insulation included – minimum savings $1,000.

  • Competitor’s quote must be dated within 2 weeks of the current date.

  • Competitor’s quote must be the same size structure, smae specifications, and accessories included as offered by us.

  • Competitor’s quote must be received by us before customer purchases from us.

  • Competitor’s building must be fabricated from an AISC (Amercian Institute of Steel Construction) certified facility in order to compare equal manufacturing standards.

Low Complexity Defined

We specialize in Low Complexity building design orders.

High complexity building quotes are done on a case by case basis.
What is considered Low complexity:

  • Size: 100 x 500 x 30 max, strictly square or rectangular

  • Roof Pitch: 1:12 through 4:12

  • Endwall & Sidewall Extensions with soffits: 1’ – 5’

  • All Snow & Wind Load Codes Available

  • Partitions and accessories (walk doors, windows, skylights, roll up doors, vents and insulation) available.

If you have questions about whether or not your building is Low or High Complexity, please call  1-800-593-4012

The Basics of Steel Building Codes

In summary, you should be familiar with the following codes prior to building purchase:

  • Snow Load/ Wind Speed
  • Wind Exposure, Example: Exposure B or C
  • Governing Code, Example: IBC 2009, 2014 or 2015
  • Current website prices reflect IBC 2015, Wind Exposure B – Call your local building department to confirm your requirements prior to ordering.

Roof Snow Load Codes/ Wind Speed Code

  • On the website, you will select from the Codes listed in the drop-down menus in Option 1, 2 or 3.
  • Please contact your local building department or Google codes for your zip code.
  • Choose codes from our list that meet or exceed your requirements for accuracy in pricing online:

Roof Snow/ Wind Speed

 0  lb. S/L/130 mph

 0  lb. S/L/150 mph

 4  lb. S/L/115 mph

 20 lb. S/L115 mph

 30 lb. S/L 115 mph

 40 lb. S/L/115 mph

 60 lb. S/L/115 mph

More About Roof Snow Loads – Pound per Square Foot

Typical snow loads in the United States can range from 4  to 60+ lbs per square foot depending on precipitation. Obviously, in warmer climates there are 0 lb minimum snow load requirements, whereas, in colder states where snow and ice hardly have a chance to thaw before the next storm, roof snow loads can be greater than 60 lbs per square foot.  In addition, snow tends to drift and accumulate heavier in some spots than others, which is why snow loads are a factor in addition to the standard dead loads of a building.

More About Wind Codes – Miles per Hour

Wind load is also determined by patterns of climate local to your building site. Wind speed codes range from 0 mph to over 160 mph winds.

Wind, unlike snow, will affect different portions of the building not limited to only the roof.  The wind’s effects on your steel building structure will vary depending on your building design and how it sits on your property.  During the software designing process, strength factors are determined by building height, the size and number of large framed openings, and even the location of those openings.

Wind Exposure

Also in relation to wind is the exposure of your building. Exposure B or C is site-specific.  For example, in gusty areas, your local building department may require Exposure C if there are no windbreaks provided by your surroundings, such as trees or neighboring buildings. Wind exposure also affects how snow tends to drift and accumulate on your building structure.

Contact Your Local Building Department Early for Governing Codes, such as IBC – 2015

While your metal building broker will ask you to confirm these codes per your local building department, the MBS (design and pricing software used by your broker) will recall default minimums when the representative enters your building site ZIP code.  In many occasions, the local building department will ask you for higher than minimum requirements and dictate which building code year governs these specifics. For example, IBC 2015 or NCBC 2014 (International Building Code for year 2015, or North Carolina Building Code for year 2014, etc.)

In summary, contact your local building department to get specific governing year code, roof snow requirement, wind speed requirement, and the wind exposure requirement specific to your building site address and ZIP code.

If you want more education regarding other loads your building is designed for, please click to read “What’s Important About Steel Building Codes”  to learn more.
